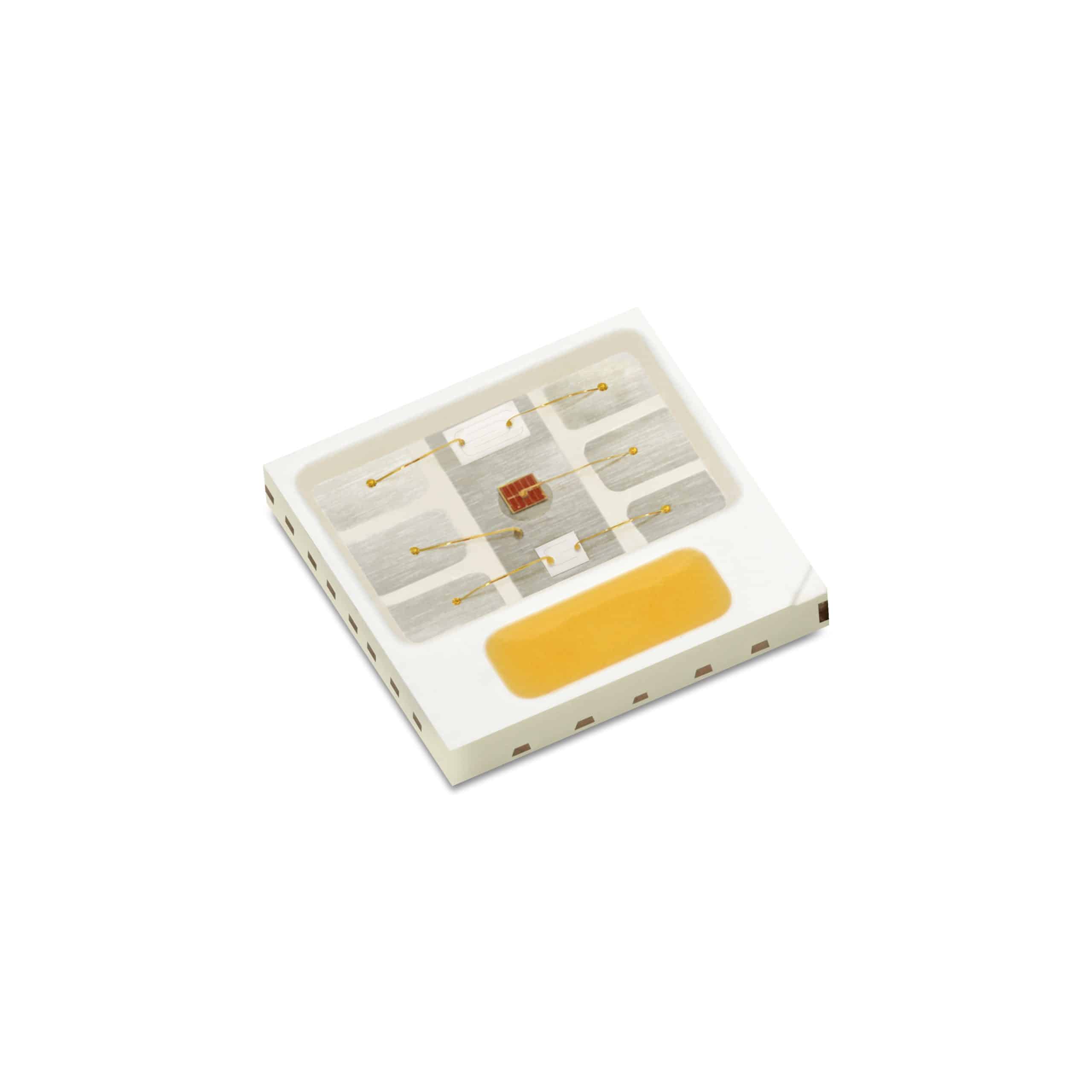

Lumileds High Power LEDs - MultiColor RGBW LUXEON MultiColor 2.5W RGB 622nm Red 528nm Green 473nm Blue2023 3000K White CRI80

1000 - 9999 piece

$0.18

10000 - 19999 piece

$0.17

>=20000 piece

$0.15

SKU:

L1MC-RGB3080500MP0

- +

Total:$0.00

Favorite Product

Company Profile

Corporate image

Certification

Total Employees: 11 - 50 People

Year Established: 2023-01

Main Products:

Product Details

Overview

Quick Details

Product Type:

High Power LEDs - Multi-Color

Certified:

RoHS

Product:

RGBW(Red, Green, Blue,White) LEDs

Wavelength/color temperature:

625 nm Red, 535 nmGreen, 485 nm Blue , 3000 K White

Voltage - Forward (Vf) (Typ):

2.1V Red, 3.15V Green, 3V Blue，3V White

Display angle:

134 deg Red, 130 deg Green, 120 deg Blue, 120 deg White

Lumens/Watt @ Current - Test:

71 lm/W Red, 101 lm/W Green, 33 lm/W Blue,33 lm/W White

Lumens/Watt @ Current - Test:

18lm Red, 38lm Green, 12lm Blue, 53 lm White

Vf - forward voltage:

250mA Red, 240mA Green, 240mA Blue, 240mA White

LED Size:

5.0mm x 5.2mm x 0.7mm

Current - Test:

120mA

Power Rating:

2.5 W

Lens Shape & Dimensions:

Square（5 mm x 5 mm）

Factory Pack Quantity:

1000

Base Product Number:

L1MC

Packaging & Delivery

Single Package Size:

10x10x10CM

Single Gross Weight:

0.03 kg

Single Net Weight:

0.02 kg

Packaging Type:

Tape&Reel

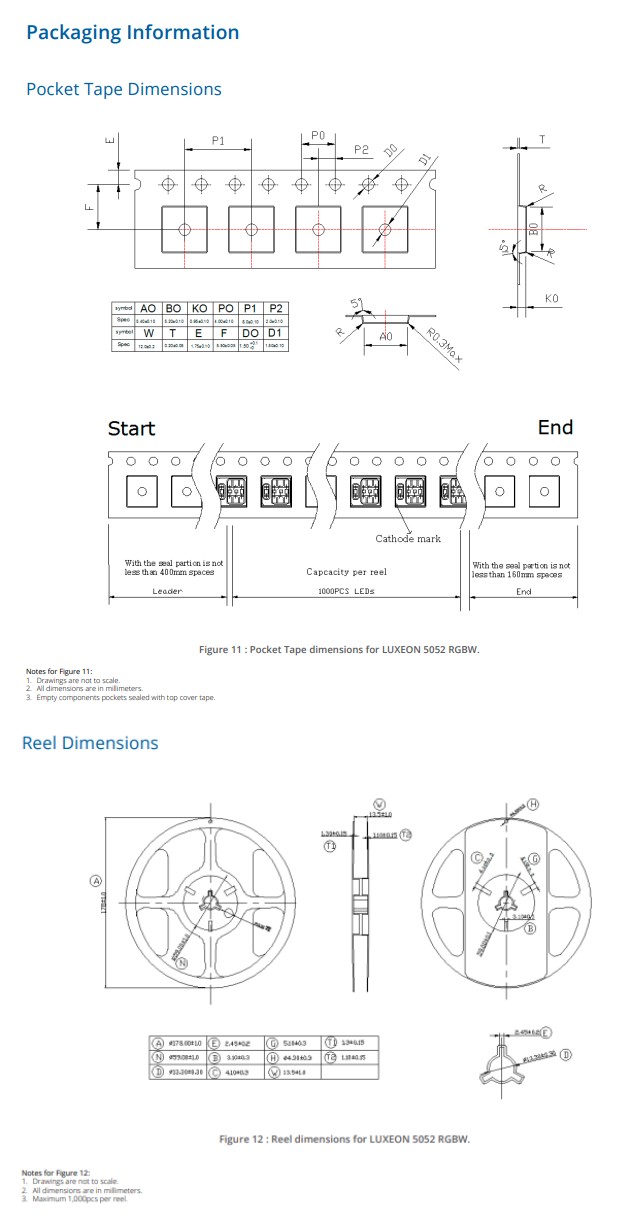

Package Picture:

Lead Time:

Quantity(Sets)	1 - 10000
Est. Time(days)	15

Product Description

Lumileds High Power LEDs - MultiColor RGBW LUXEON MultiColor 2.5W RGB 622nm Red 528nm Green 473nm Blue2023 3000K White CRI80
