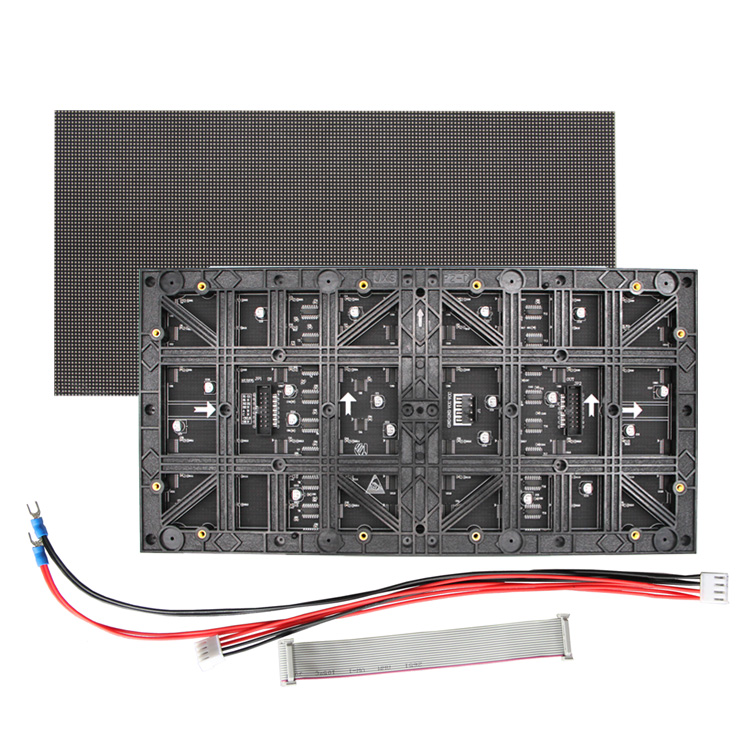

Indoor P2.5 LED Display Module

>=1 piece

$20.00

SKU:

P2.5/3840Hz(320mm*160mm)

- +

Total:$0.00

Favorite Product

Company Profile

Corporate image

Certification

Total Employees: 11 - 50 People

Year Established: 2017-11

Main Products: LED Display,LED screen,led Rental

Major markets and share:

50% China

10% North America

5% Eastern Europe

5% Southeast Asia

5% Eastern Asia

5% Western Europe

5% Central America

5% Northern Europe

10% Southern Europe

Product Details

Overview

Quick Details

Model Number:

P2.5-32scan

Module size:

320mm*160mm

Physical pitch:

2.5mm

Physical Density:

160000/m2

Pixel configuration:

1R1G1B

Package mode:

SMD 3IN1 -2020

Module Resolution:

128dots(W)*64dots(H)

Max Power:

20W

Module thickness:

14.7mm

Module Weight:

369g

Drive type:

Constant drive

Scan mode:

1/32scan

Port type:

HUB75

Match Cabinet Size:

W640mm*H480mm /W640mm*H640mm/ W960mm*H480mm

best viewing angle:

H:120°;V:120°

recommended viewing distance:

2.5m-18m

Driving IC:

SM16380

Rate refresh:

3840Hz

Brightness of white balance:

600cd/㎡

Input voltage:

110-220V;AC±10%

operating temperature/humidity:

-20℃~+50℃

Average Power Consumption:

150-250w/㎡

Max. Power Consumption:

600w/㎡

life time:

>100000 hours

the rate:

<0.0001

MBTF:

>5000 hours

Packaging & Delivery

Single Package Size:

57.20x37.70x41.50CM

Single Gross Weight:

20 kg

Single Net Weight:

20 kg

Packaging Type:

The packaging is made of high-quality cardboard boxes, each with a size of 58cm * 43cm * 32cm. Each box has a quantity of 40 pieces and a weight of 21KG. The module is equipped with angle protectors, overheated shrink film packaging, and contains pearl cotton angle protectors, effectively avoiding product damage caused by collisions during handling and transportation.

Package Picture:

Lead Time:

Quantity(Sets)	1 - 400
Est. Time(days)	7
